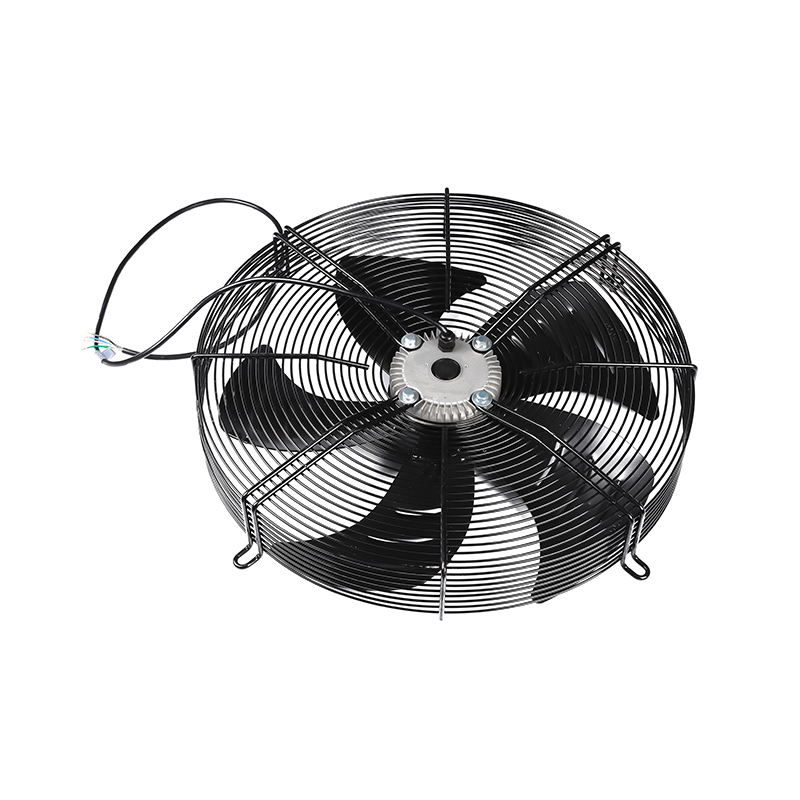

Reducing the noise level of
External Rotor Axial Flow Fans is a comprehensive engineering issue that requires comprehensive consideration from fan design, material selection, manufacturing process, installation layout, operation and maintenance, etc.
1.
Fan design optimization
Blade design: Optimize the airfoil, chord length and twist angle of the blades to reduce airflow separation and vortex generation, and reduce aerodynamic noise.
Rotor design: Before starting the rotor design, it is first necessary to clarify the design goals and requirements. This includes determining the size, weight, speed, power, efficiency, life and operating environment of the rotor. These requirements will directly affect the design parameters and material selection of the rotor. The choice of rotor material has a significant impact on rotor performance, life and cost. Common rotor materials include carbon steel, stainless steel, aluminum alloy, titanium alloy and composite materials. When selecting materials, factors such as strength, stiffness, wear resistance, corrosion resistance, and cost need to be considered.
Motor selection: Calculate or compare the required motor power based on application requirements and load characteristics. For constant load continuous operation, the required motor power can be calculated based on load power, production machinery efficiency and motor efficiency. For short-duration or intermittent duty applications, load duration and duty cycle time need to be considered to select the appropriate motor power. Select the appropriate motor material and grade based on the application environment and requirements. For example, motors working in harsh environments should choose motors with protection levels. At the same time, the corrosion resistance, wear resistance and other characteristics of the motor need to be considered to ensure that the motor maintains good performance during long-term use.
2. Material selection and manufacturing process
Material selection: Use lightweight, high-strength, low-noise materials, such as carbon fiber composite materials, polymer plastics, etc., to reduce fan vibration and noise.
Manufacturing process: Precision manufacturing process is adopted to ensure the accuracy and balance of the fan blades, rotor, motor and other components, and reduce noise caused by manufacturing errors.
3. Installation layout and shock absorption measures
Installation layout: Reasonably plan the installation position of the fan to avoid resonance with other equipment and reduce noise transmission. At the same time, ensure that the inlet and outlet of the fan are clear to reduce air flow resistance and noise.
Shock absorption measures: Install shock pads or shock absorbers on the base and support structure of the fan to reduce vibration transmission and noise radiation.
4. Operation and maintenance
Regular cleaning: Regularly clean the
fan blades, rotor, motor and other parts to remove dust and debris to keep the fan in good operating condition.
Lubrication and maintenance: Perform regular lubrication and maintenance on the bearings and transmission parts of the fan to reduce friction and wear and reduce mechanical noise.
Monitoring and adjustment: Monitor the operating status of the fan in real time, such as rotation speed, current, temperature and other parameters, and adjust the fan operating parameters in a timely manner to ensure that the fan operates in the best condition.
5. Noise control technology
Noise reduction treatment: Common noise reduction treatment methods include porous sound-absorbing materials, soundproof covers, mufflers, sound barriers, and active noise reduction technology. When performing noise reduction treatment, it is necessary to select an appropriate noise reduction method based on the specific noise source, propagation path and noise reduction requirements. At the same time, factors such as the cost, installation and maintenance difficulty of the noise reduction equipment also need to be considered. In practical applications, it is usually necessary to combine multiple noise reduction methods to achieve the best noise reduction effect.
Sound insulation treatment: Set up a sound insulation barrier or sound insulation cover around the fan to prevent noise from spreading to the surrounding environment.
Active noise reduction technology: Uses active noise reduction technology, such as reverse sound wave interference, vibration cancellation, etc., to actively suppress the noise generated by the fan.
6. Environment Optimization
Noise isolation: Install the fan in an independent soundproof room to reduce the impact of noise on the surrounding environment.
Air circulation optimization: Optimize the air circulation environment around the fan to reduce air flow resistance and noise generation.
